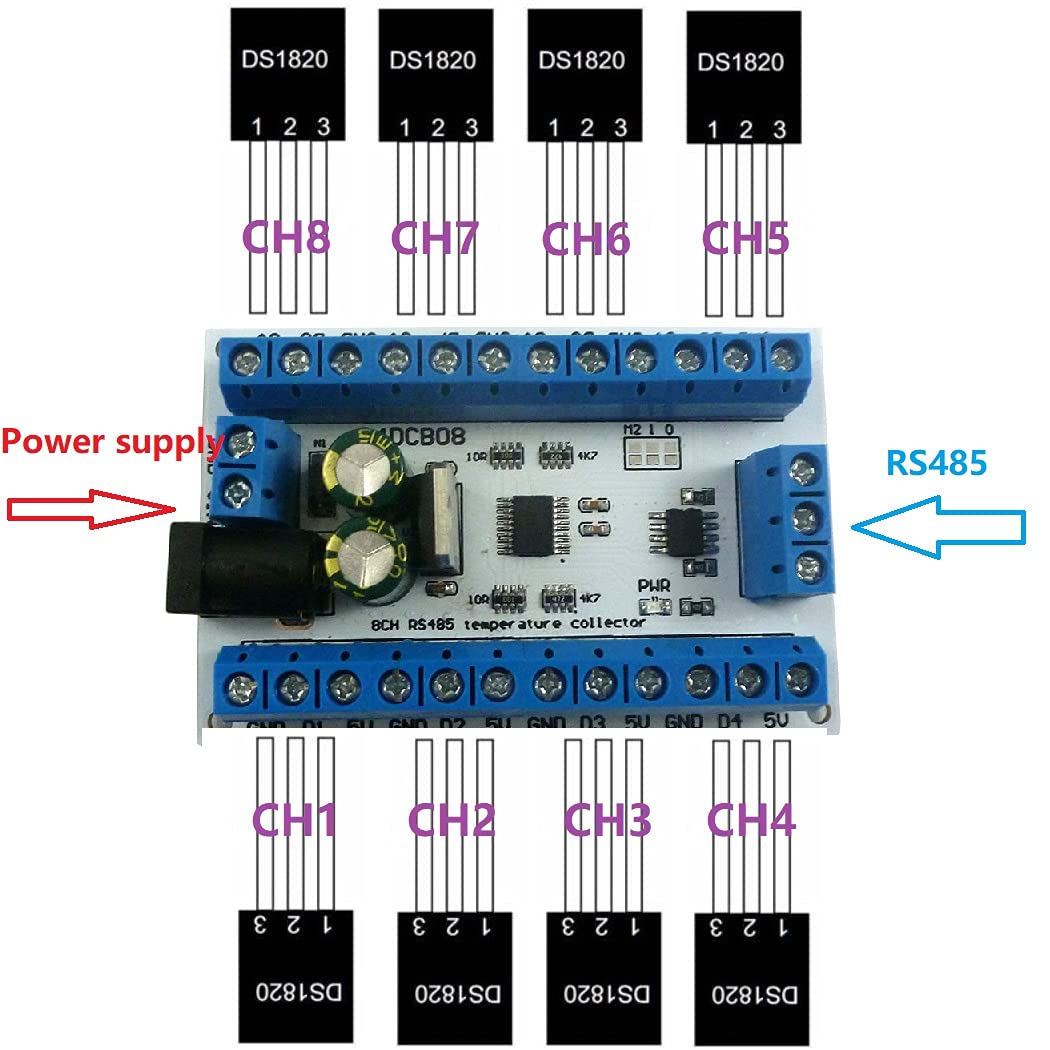

8CH DC 12V RS485 DS18B20 Temperature Sensor Temperature Acquisition Collector Module for Paperless Recorder PLC Configuration (5 PCS (Motherboard))

Please note that ! ! ! If you only choose: DS18B20 Sensor, there will only be a relative number of sensing linesExcluding moduleProduct Name: 8CH DC 12V RS485 DS18B20 Temperature Sensor Temperature acquisition collector module for Paperless recorder PLC Configuration SoftwarePacking list:1 PCS/5 PCSR4DCB08 8CH RS485 Temperature sensor BoardOR2 PCS/8 PCS DS18B20 Sensor（Please purchase according to your choice）Description :1: Operating Voltage : DC 6-24V(DC 9V 12V 15V 24V)2: Operating Current :8-13MA(It is related to the number of external DS18B20)3: MODBUS RTU Command support 03 06 function code4Temperature sensor is DS18B20, Up to 8 DS18B20 temperature sensors can be connected at the same time5 Measures Temperatures from -55°C to +125°C(-67°F to +257°F)±0.5°C Accuracy from -10°C to +85°C6 :MODBUS commands can be made serial HyperTerminal (serial assistant) OR PLC Enter;7 :Under the MODBUS command mode, it can support up to 247 devices in parallel8 :Size: 70 * 46 * 18mm9 :Weight: 40 gFor more information, please contact meTypical application:Thermostatic ControlsPaperless recorderIndustrial SystemsConsumer ProductsThermometersThermally Sensitive SystemsIndoor and outdoor temperature measurementWeather forecasting, and monitoringTemperature in Computer RoomWarehouse temperaturePLCConfiguration Software

• Operating Voltage : DC 6-24V(DC 9V 12V 15V 24V)
• Temperature sensor is DS18B20, Up to 8 DS18B20 temperature sensors can be connected at the same time
• Measures Temperatures from -55°C to +125°C(-67°F to +257°F) ±0.5°C Accuracy from -10°C to +85°C
• MODBUS commands can be made serial HyperTerminal (serial assistant) OR PLC Enter;
• Under the MODBUS command mode, it can support up to 247 devices in parallel
